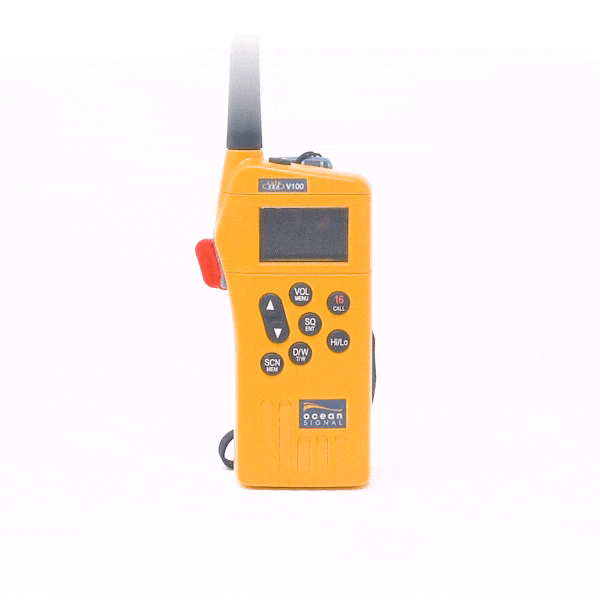

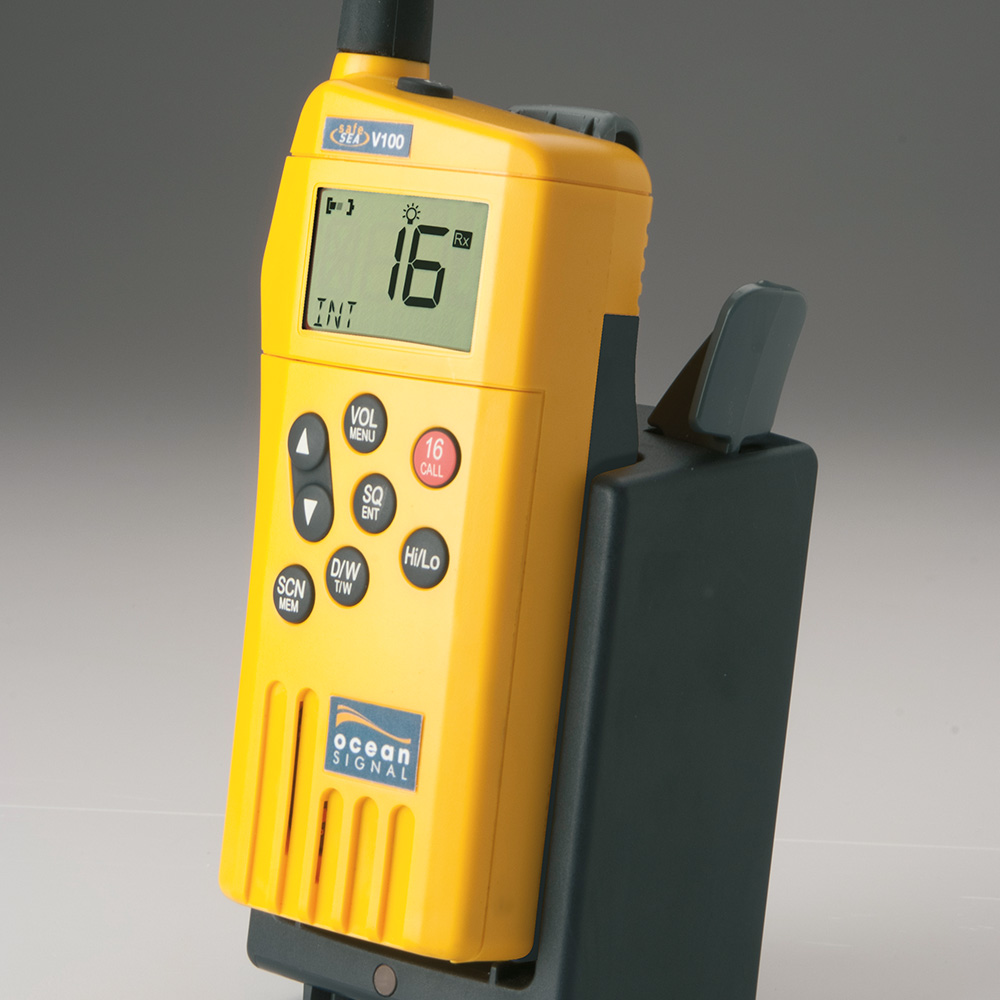

SafeSea V100 VHF

The SafeSea V100 survival craft hand portable radiotelephone meets all the requirements of the IMO for carriage on SOLAS ships. Designed to be ultra-rugged and easy to use, both on-board and in distress situations, the V100 is the ideal choice for mandatory and voluntary carriage.



In addition to the primary battery, as an option for everyday use, Ocean Signal offers a lithium polymer rechargeable battery (RB5V) option. The quick release rapid charger provides the ideal solution for keeping the batteries fully charged.





SKU: 720S-00585

Categories: SafeSea

For routine testing of the V100 an alkaline, non-rechargeable, battery (TB6V) is available.  This battery has limited life for testing only and not suitable for operational use. Additionally, the novel battery protection tab means the primary battery can be permanently attached to the radio without fear of losing its charge. The radio will always be available for use in times of emergency without the need to remove protective labels or the like before use. Simply break off the red protective tab and the radio will be immediately ready to turn on.



Features:



  • Lithium Polymer rechargeable battery option available with rapid charger, for everyday normal use
  • Fully waterproof, even 40C thermal shock
  • High efficiency transmitter for maximum battery life
  • Rugged design exceeds GMDSS environmental requirements
  • Lithium primary battery for emergency use

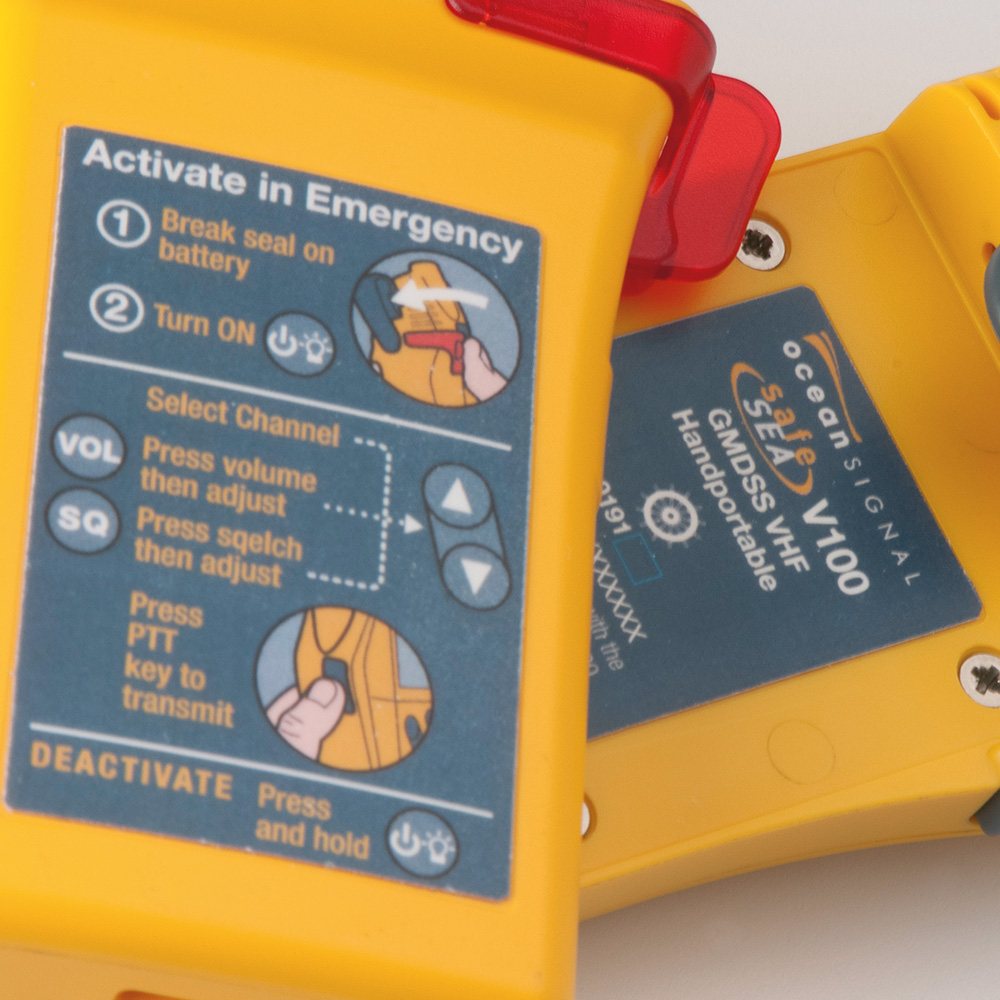

    • Novel battery protection tab protects from inadvertent use
    • Battery classified as non-hazardous for shipment
    • Battery provides in excess of 16 hours typical operation, even at -20°C. (10% Tx, 10% Rx, 80% Squelched)
  • Laser etched key legends for durability
  • High contrast, backlit LCD and keypad

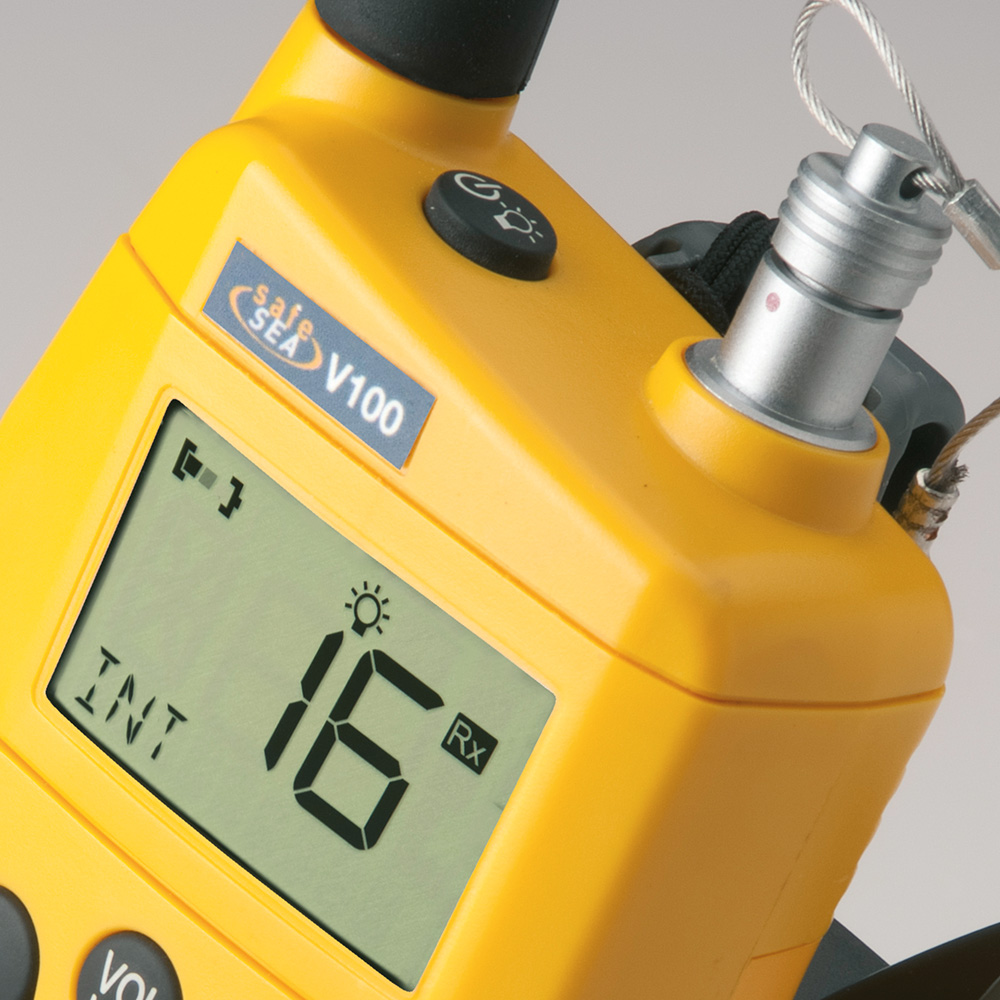

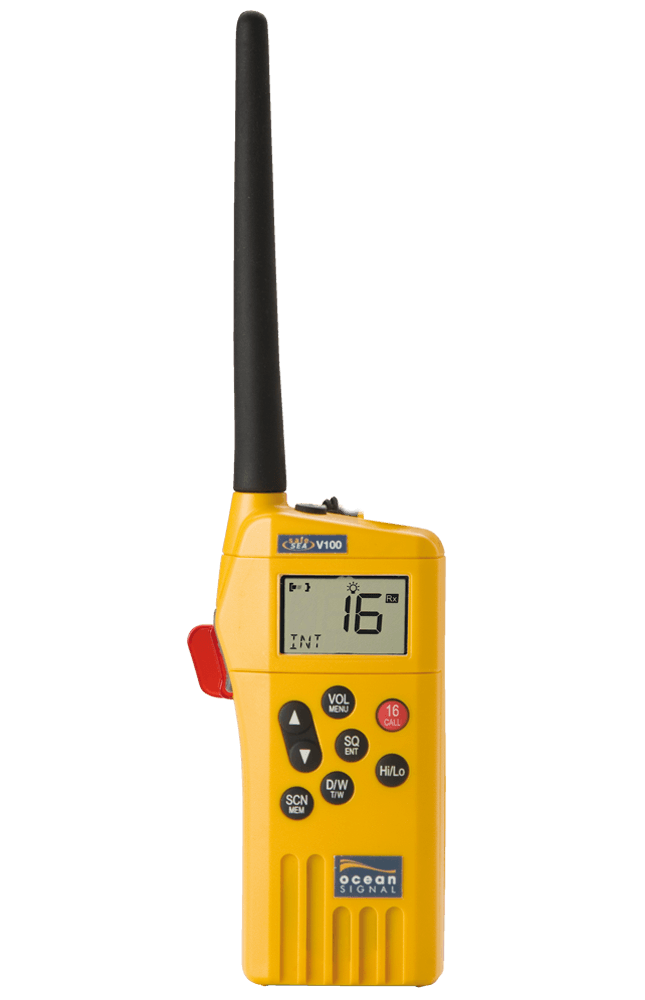

  • Rugged accessory socket option; waterproof to IP68 for use with headsets, helmets, fist mikes, etc.
  • 4 scanning modes, D/W, T/W, scan and memory scan
  • 21 simplex channels according to IMO SOLAs requirements



Important: Please read this service bulletin advising of a free battery exchange offer on batteries with expiry date not exceeding September 2023.  Ce bulletin est également disponible en langue française

Transmitter

Output Power (High)

2.5Watts

Output Power (Low)

1Watt

Modulation

±5kHz(max) FM

Emission Designator

16K0G3EJN

Pre-Emphasis

6dB/octave (300Hz to 3kHz)

Spurious Emissions

<0.25μWatt

Receiver

Sensitivity (20dB SINAD)

-117dBm

Audio Output Power

0.4W

Adjacent Channel Rejection

>70dB

Intermodulation Rejection

>68dB

Spurious Response Rejection

>70dB

Spurious Emissions

<2nWatt

General

Number of channels (GMDSS: simplex only)

21

Battery

Primary

Lithium

Chemistry

Lithium/Iron Disulfide (Li/FeS2)

Operational Lifetime (10% Tx:10% Rx:80% Squelched)

>16hours

Replacement interval

5 years

Rechargeable

Lithium Polymer

Environmental

IEC60945 Category

Portable

Operating Temperature Range

-20°C to +55°C

Storage Temperature Range

-30°C to +70°C

Humidity

93% @ +40°C

Waterproof

1metre for 30minutes

Thermal Shock

100mm with 45°C drop for 1hour

Drop proof (onto hardwood surface)

1metre (6 faces)

Dimensions

Height (Body only)

141mm

Width

68mm (70mm inc. battery tab)

Depth

37mm

Standards and Approvals (pending)

Approval Standards

(GMDSS)

IMO regulations

A.694(17); MSC.149(77)

VHF

IEC61097-12

EMC

IEC60945

European approval

Marine Equipment Directive A.1/5.17

USA standards (GMDSS)

CFR47 part 80.1101

All servicing and repairs in the radio must be carried out by an approved service agent. Please retain the original packaging for your radio. If the radio has to be returned, for any reason, the original packaging should be used.



Your SafeSea V100 radiotelephone is warranted against manufacturing defects and workmanship for a period of two years from date of purchase. Ocean Signal Ltd will, at its discretion, repair or replace a faulty product free of charge, including return carriage costs to the owner.

Why are there fewer channels on the V100 than normal VHF handhelds?

GMDSS handheld radios are limited to having the International simplex channels fitted as these are the only ones that can be used ship to ship.

How can I test my VHF radio?

The primary battery for the SafeSea V100 is protected from accidental use by a break off tab, which inhibits the output of the battery. To test the radio, Ocean Signal provide an alkaline test battery, the TB6V. Alternatively, a rechargeable option is available, the RB5V, with charger kit (part number 721S-00622).
