SafeSea S100 SART

The SeaSafe S100 SART is designed to assist in the rescue and recovery of liferafts and survival craft. When switched on, the SART remains in a standby mode until automatically activated by an X Band Radar sweep from any vessel in the vicinity. The SafeSea S100 transmits a series of pulses which are displayed on the ship’s Radar as a line of dots, providing a bearing to the survival craft.

SKU: 710S-00607

Categories: SafeSea

The SafeSea S100 Search and Rescue Transponder (SART) is a dedicated radar transponder that complies with IMO SOLAS regulations.



  • Superior battery life – even at -20°C
  • User-replaceable battery
  • Non Hazardous battery
  • Five-year replacement interval
  • Compact size for easy liferaft packing

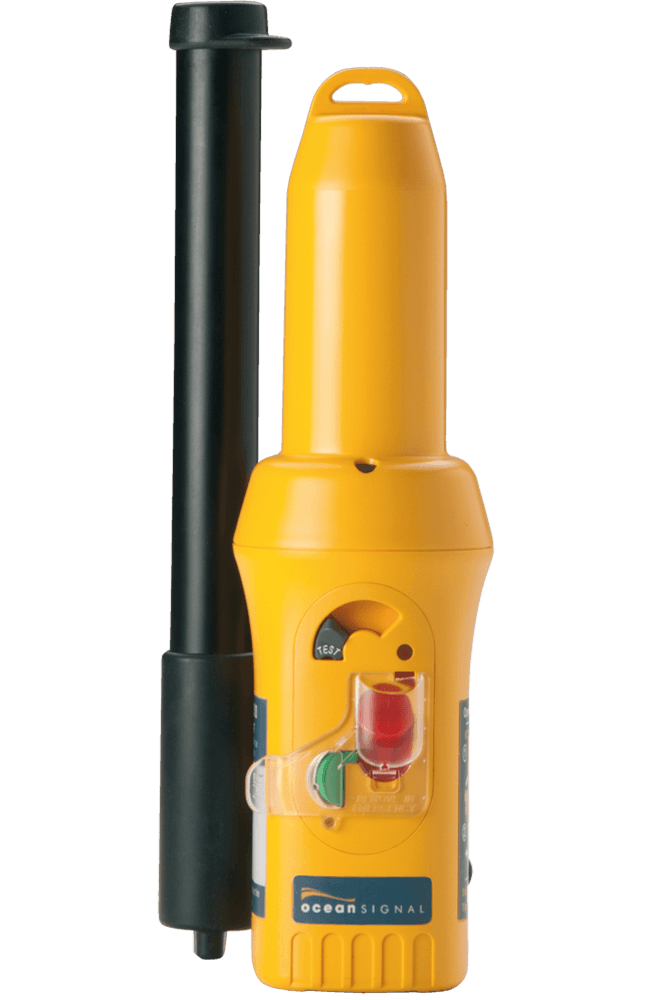

  • Supplied complete with telescopic pole and storage bracket



Carriage requirements



  • SARTs are required on all IMO SOLAS vessels on international voyages:-
    • One on 300-500GRT
    • Two if over 500GRT
    • One SART per every four liferafts on ro-ro passenger vessels
  • Nationally mandated vessels, including fishing vessels, passenger craft, commercial workboats, etc
  • Most Super and Mega yachts are required to carry a SART, especially if covered by the MCA code of practice, which is recognized by many countries.
  • Voluntary fit vessels will also benefit by carrying a SART

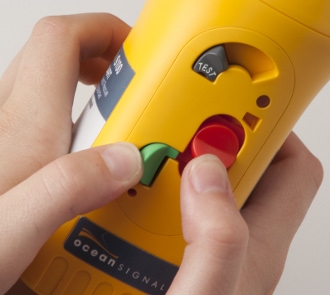

The activation controls are identical to those on theSafeSea E100 EPIRB, making use by unskilled operators much easier

General

Frequency range

9.2-9.5GHz

Radiated output power

>26dBm eirp

Battery Type Lithium Primary

Chemistry

Lithium/Iron Disulfide (Li/FeS2)

Operational Life

>96hours standby plus >12hours operational

Battery Replacement Interval

5years

Environmental

Operating Temperature Range

-20°C to +55°C

Storage Temperature Range

-30°C to +70°C

Waterproof

>10metres at +20°C

Dimensions

Height

227mm

Body Diameter (max)

65mm (82mm)

Standards and Approvals

IMO regulations

A.694(17); MSC.247(83)

International Standards Radio

IEC61097-1

International Standards EMC

IEC60945

European approval

Marine Equipment Directive A.1/4.18

USA Standards

FCC CFR47 part 80.1101

Manuals

S100 User Manual – English

Download

S100 User Manual – Spanish

Download

S100 User Manual – French

Download

Certificates

100 EU Declaration of Conformity (MED)

Download

S100 EU Type Examination Certificate (MED)

Download

S100 UK Declaration of Conformity (MER)

Download

S100 UK Type Examination Certificate (MER)

Download

S100 US Equipment Authorization Certificate (FCC)

Download

S100 Canadian Certificate (ISED)

Download

S100 China Approval Certificate (CSS)

Download

Your Ocean Signal product is warranted against manufacturing defects in materials and workmanship for a period of 2 years from the date of purchase and in accordance with the following conditions.



Ocean Signal will at its discretion, repair or replace faulty product free of charge excluding the cost of shipping. Proof of purchase from the original purchaser shall be required in order for a warranty claim to be valid. All claims shall be made in writing to Ocean Signal or an approved service dealer or
distributor.



Ocean Signal shall not be liable to the buyer under the above warranty:



  • for any repairs or modifications carried out on the product using parts that are not supplied
    or approved by the manufacturer Ocean Signal including batteries and for work carried out
    other than by Ocean Signal or approved service dealers,
  • for any part, material or accessory that is not manufactured by Ocean Signal, the consumer
    will be covered by the guarantee / warranty offered to Ocean Signal by the manufacturer or
    supplier of such a component,
  • for product which has not been fully paid for,
  • for any product supplied by Ocean Signal to a customer under an alternative warranty or
    commercial agreement,
  • for the cost of shipping product to and from the customer.
  • The Battery is only warranted until the date of expiry and provided the unit is tested in accordance
    with the information in the user manual.



This warranty does not affect your statutory rights.

Why should I carry a SART?

A SART is designed to aid the rescue authorities locate you in emergency. Although it is not a primary alerting device, like an EPIRB, it will guide the rescue craft to you by displaying a position and bearing line on the rescue craft’s radar.
